MPC Series

Características

Materiales USP Clase VI
Pestillo ergonómico
Barrena de manguera sin línea de separación
Materiales libres de EEB / EET
Esterilizable en autoclave, Et0, e-beam o gamma

Beneficios

Cumple con los requisitos de ADCF
Elimina la posible ruta de fuga
Reutilizable, pero lo suficientemente económico como para permitir la desechabilidad
Cumple con los requisitos de biocompatibilidad
Fácil de operar, incluso con las manos enguantadas

	Pressure:	Up to 60 psi, 4.1 bar
	Temperature:	ABS: -40°F to 160°F (-40°C to 71°C) Polycarbonate: -40°F to 250°F (-40°C to 121°C) Polysulfone: -40°F to 300°F (-40°C to 149°C)
	Materials:
	Main component:	ABS (white), USP Class VI, ADCF Polycarbonate (purple tint), USP Class VI, ADCF Polysulfone (amber tint), USP Class VI, ADCF
	Locking Sleeves:	Polysulfone (white), USP Class VI , ADCF
	Thumb latches:	Polycarbonate (white), Polysulfone (amber tint), USP Class VI, ADCF
	O-rings:	Silicone (clear), platinum-cured, USP Class VI, ADCF and Buna-N (black), USP Class V
	Tubing sizes:	1/8", 1/4" and 3/8" ID (3.22mm, 6.4mm and 9.5mm ID)
	Sterilization:
	Gamma irradiation:	Up to 50 kGy irradiation
	Autoclave:	Polycarbonate: Up to 250°F (121°C), 30 minutes, up to 10 repetitions. Sterilize uncoupled only. Polysulfone: Up to 270°F (132°C) for 60 minutes, up to 25 repetitions. Sterilize uncoupled only.

ADVERTENCIA: la presión, la temperatura, los productos químicos y el entorno operativo pueden afectar el rendimiento de los acoplamientos. Es responsabilidad del cliente probar la idoneidad de los productos de Colder en sus propias condiciones de aplicación.

Cv Value

Cv~5.5 (79.25) max

Legend

Straight-Through

Single Shut-Off

Double Shut-Off

Non-Spill

Cv values are based on gpm and psi, and Ipm and bar (shown in parentheses)

Productos

Bodies

MPC17002T03

1/8 Hose Barb Non-Valved In-Line Coupling Body

MPC17002T39

1/8 Hose Barb Non-Valved In-Line Coupling Body

MPC17004T

1/4 Hose Barb Non-Valved In-Line Coupling Body

MPC17004T03

1/4 Hose Barb Non-Valved In-Line Coupling Body

MPC17004T39

1/4 Hose Barb Non-Valved In-Line Coupling Body

MPC17006T

3/8 Hose Barb Non-Valved In-Line Coupling Body

MPC17006T03

3/8 Hose Barb Non-Valved In-Line Coupling Body

MPC17006T39

3/8 Hose Barb Non-Valved In-Line Coupling Body

MPC17C1703

MPC Body x MPC Back-to-Back Body Adapter

MPC17C1739

MPC Body x MPC Back-to-Back Body Adapter

MPC17X1703

MPC Body x MPX Back-to-Back Body Adapter

MPC17X1739

MPC Body x MPX Back-to-Back Body Adapter

MPC3301239

3/4 Sanitary Non-Valved Coupling Body

MPC3301639

1 Sanitary Non-Valved Coupling Body

MPCK17002T03

1/8 Hose Barb Non-Valved In-Line Coupling Body With Lock

MPCK17002T39

1/8 Hose Barb Non-Valved In-Line Coupling Body With Lock

MPCK17004T03

1/4 Hose Barb Non-Valved Coupling Body With Lock

MPCK17004T39

1/4 Hose Barb Non-Valved Coupling Body With Lock

MPCK17006T03

3/8 Hose Barb Non-Valved Coupling Body With Lock

MPCK17006T39

3/8 Hose Barb Non-Valved Coupling Body With Lock

Caps & Plugs

MPC30003M

MPC Coupling Plug

MPC30039M

MPC Coupling Plug

MPC30L

MPC Tethered Plug

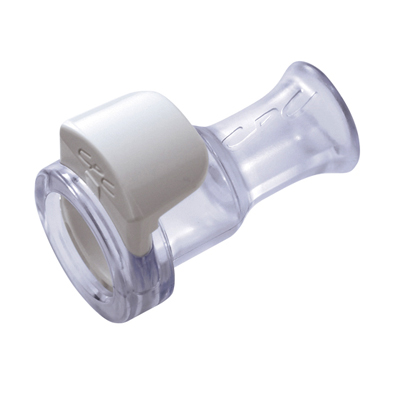

MPC32003

MPC Coupling Cap

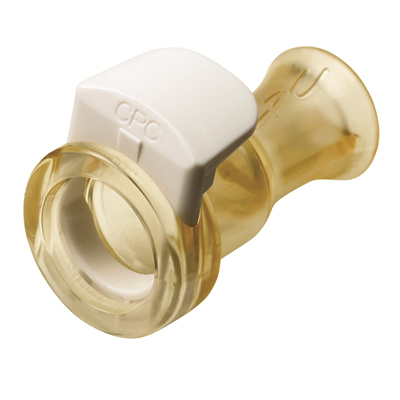

MPC32039

MPC Coupling Cap

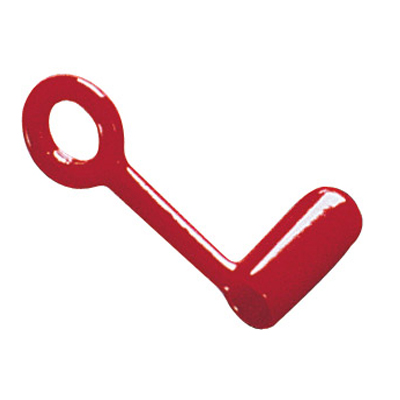

MPC32L

MPC Tethered Cap

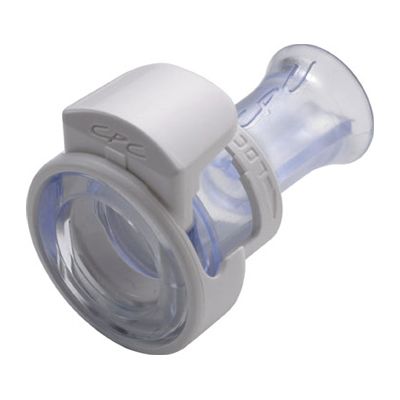

MPCK32003

MPC Sealing Cap With Lock

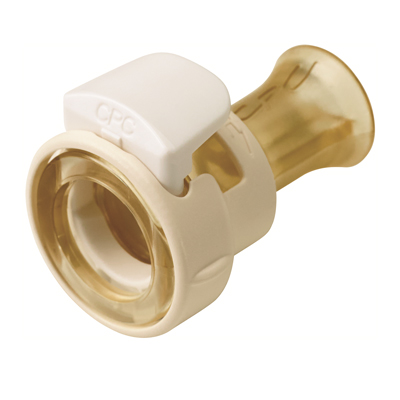

MPCK32039

MPC Sealing Cap With Lock

Inserts

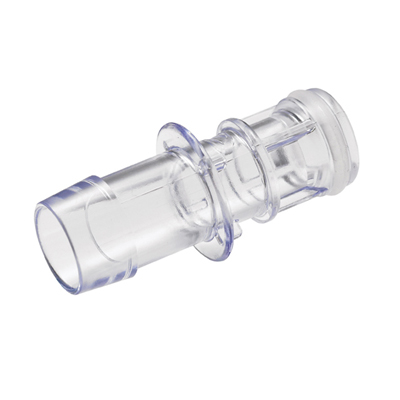

MPC22002T03

1/8 Hose Barb Non-Valved Class VI Polycarbonate Coupling Insert

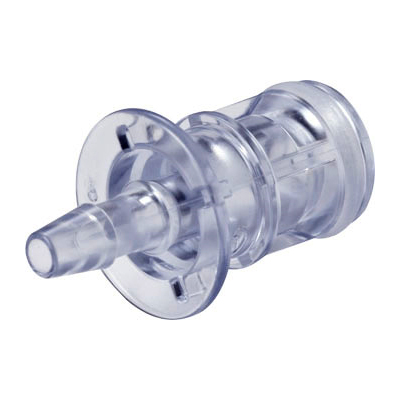

MPC22002T03M

1/8 Hose Barb Non-Valved In-Line Coupling Insert

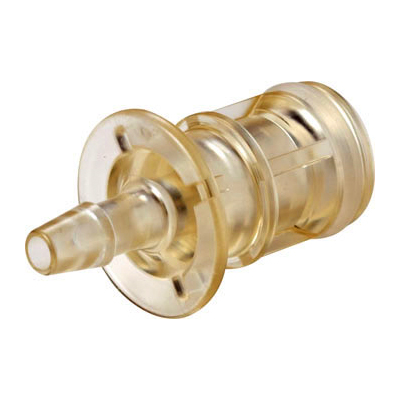

MPC22002T39M

1/8 Hose Barb Non-Valved In-Line Coupling Insert

MPC22004T

1/4 Hose Barb Non-Valved Coupling Insert

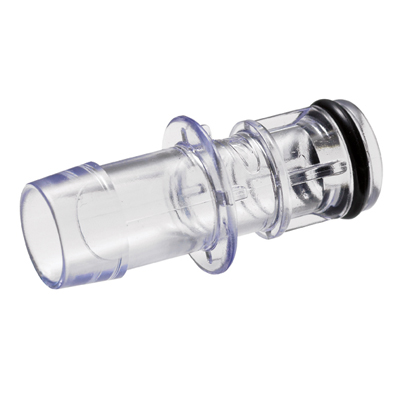

MPC22004T03

1/4 Hose Barb Non-Valved Coupling Insert

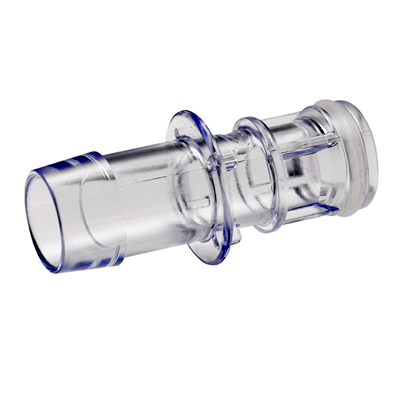

MPC22004T03M

1/4 Hose Barb Non-Valved Coupling Insert

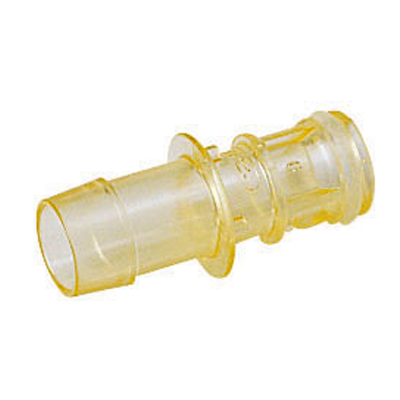

MPC22004T39M

1/4 Hose Barb Non-Valved Coupling Insert

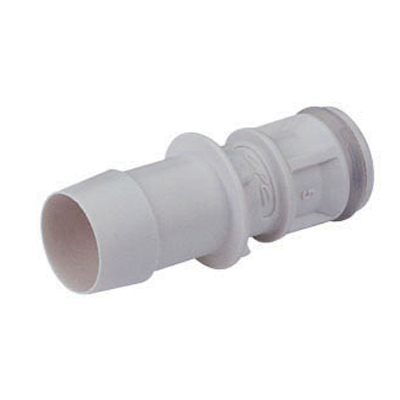

MPC22004TM

1/4 Hose Barb Non-Valved Coupling Insert

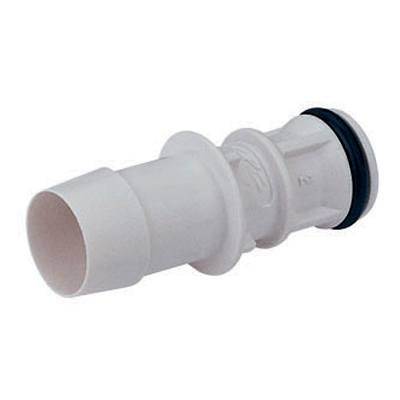

MPC22006T

3/8 Hose Barb Non-Valved Coupling Insert

MPC22006T03

3/8 Hose Barb Non-Valved Coupling Insert

MPC22006T03M

3/8 Hose Barb Non-Valved Coupling Insert

MPC22006T39M

3/8 Hose Barb Non-Valved Coupling Insert

MPC22006TM

3/8 Hose Barb Non-Valved Coupling Insert

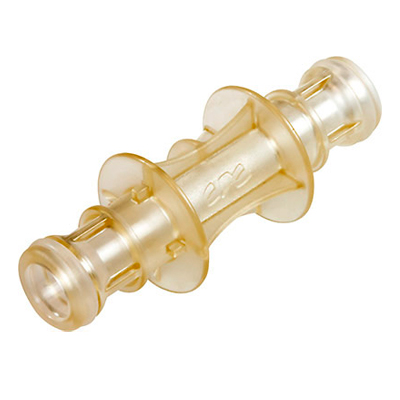

MPC22C2239M

MPC to MPC Back-to-Back Insert Adapter

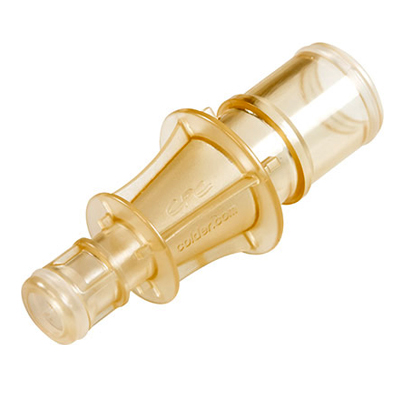

MPC22X2239M

MPC to MPX Back-to-Back Insert Adapter

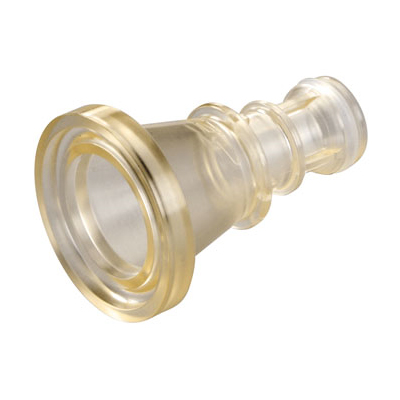

MPC44012T39M

3/4 Sanitary Non-Valved MPC Coupling Insert

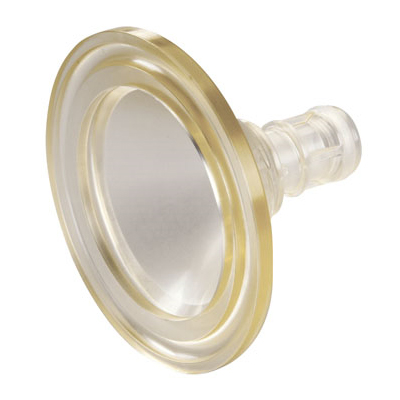

MPC44024T39M

1 1/2 Sanitary Non-Valved MPC Coupling Insert

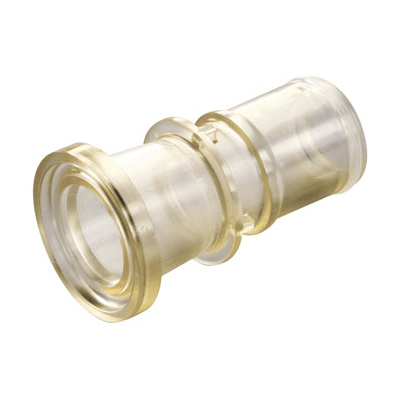

MPX44012T39M

3/4 Sanitary Non-Valved MPX Coupling Insert

MPX44024T39M

1-1/2 Sanitary Non-Valved MPX Coupling Insert

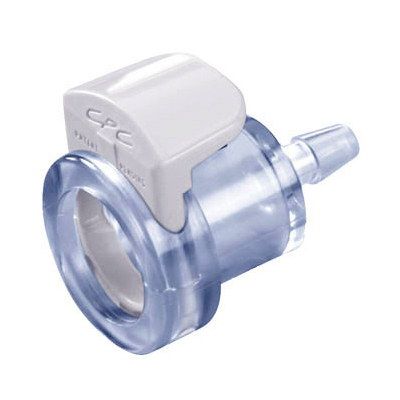

1/8 Hose Barb Non-Valved In-Line Coupling Body

Part #:	MPC17002T03
Material:	Polycarbonate
Color:	Purple Tint
Temp. Range:	-40°F to 250°F (-40°C to 121°C)
Mounting Option:	Free Floating
Sterilization:	Gamma, Autoclave
Valve Options:	Non-Valved
Material Finish:	Natural

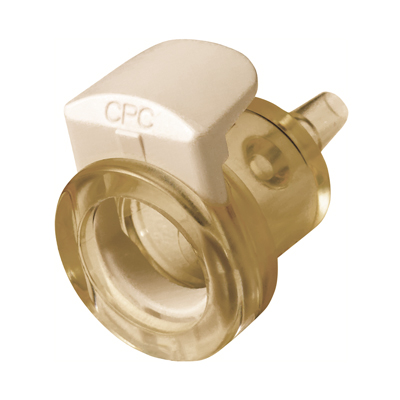

1/8 Hose Barb Non-Valved In-Line Coupling Body

Part #:	MPC17002T39
Material:	Polysulfone
Color:	Amber tint
Temp. Range:	-40°F to 300°F (-40°C to 149°C)
Mounting Option:	Free Floating
Sterilization:	Gamma, Autoclave
Valve Options:	Non-Valved
Material Finish:	Natural

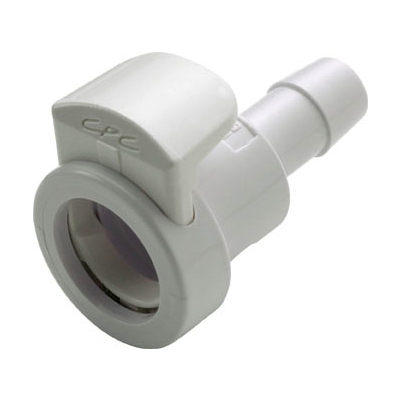

1/4 Hose Barb Non-Valved In-Line Coupling Body

Part #:	MPC17004T
Material:	ABS
Color:	White
Temp. Range:	-40°F to 160°F (-40°C to 71°C)
Mounting Option:	Free Floating
Sterilization:	Gamma
Valve Options:	Non-Valved
Material Finish:	Molded White

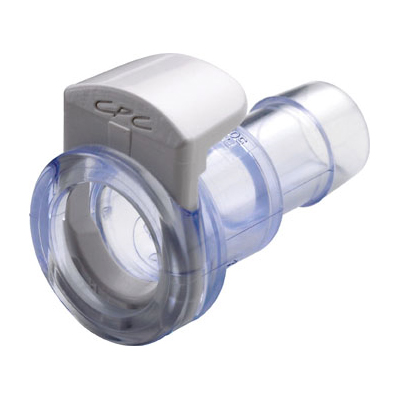

1/4 Hose Barb Non-Valved In-Line Coupling Body

Part #:	MPC17004T03
Material:	Polycarbonate
Color:	Purple Tint
Temp. Range:	-40°F to 250°F (-40°C to 121°C)
Mounting Option:	Free Floating
Sterilization:	Gamma, Autoclave
Valve Options:	Non-Valved
Material Finish:	Natural

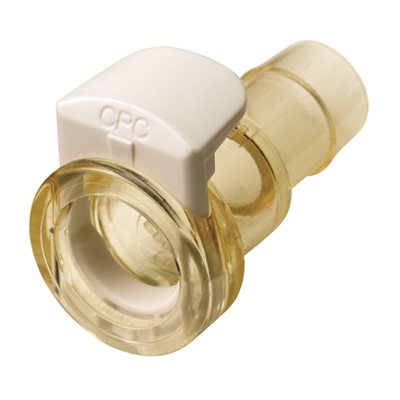

1/4 Hose Barb Non-Valved In-Line Coupling Body

Part #:	MPC17004T39
Material:	Polysulfone
Color:	Amber Tint
Temp. Range:	-40°F to 300°F (-40°C to 149°C)
Mounting Option:	Free Floating
Sterilization:	Gamma, Autoclave
Valve Options:	Non-Valved
Material Finish:	Natural

3/8 Hose Barb Non-Valved In-Line Coupling Body

Part #:	MPC17006T
Material:	ABS
Color:	White
Temp. Range:	-40°F to 160°F (-40°C to 71°C)
Mounting Option:	Free Floating
Sterilization:	Gamma
Valve Options:	Non-Valved
Material Finish:	Molded White

3/8 Hose Barb Non-Valved In-Line Coupling Body

Part #:	MPC17006T03
Material:	Polycarbonate, USP Class VI, ADCF
Color:	Purple Tint
Temp. Range:	-40°F to 250°F (-40°C to 121°C)
Mounting Option:	Free Floating
Sterilization:	Gamma, Autoclave
Valve Options:	Non-Valved
Material Finish:	Natural

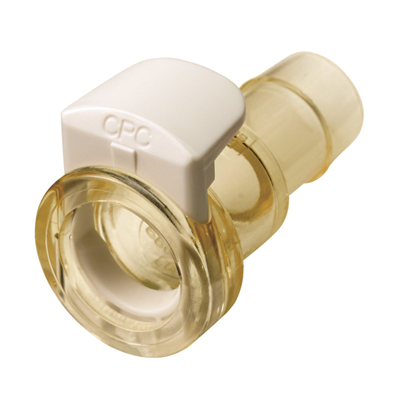

3/8 Hose Barb Non-Valved In-Line Coupling Body

Part #:	MPC17006T39
Material:	Polysulfone, USP Class VI, ADCF
Color:	Amber Tint
Temp. Range:	-40°F to 300°F (-40°C to 149°C)
Mounting Option:	Free Floating
Sterilization:	Gamma, Autoclave
Valve Options:	Non-Valved
Material Finish:	Natural

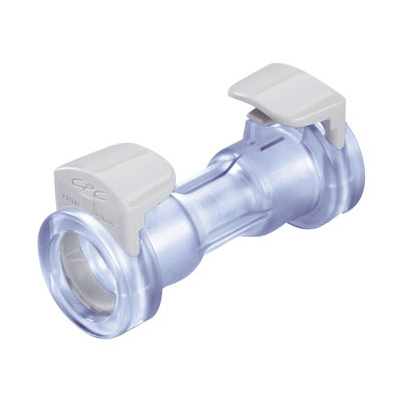

MPC Body x MPC Back-to-Back Body Adapter

Part #:	MPC17C1703
Material:	Polycarbonate, USP Class VI, ADCF
Pressure Range:	Up to 60 psi, 4.1 bar
Color:	Purple Tint
Temp. Range:	-40°F to 250°F (-40°C to 121°C)
Mounting Option:	Free Floating
Sterilization:	Gamma, Autoclave
Valve Options:	Non-Valved
Material Finish:	Natural

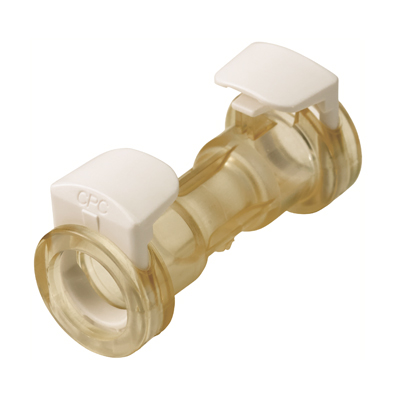

MPC Body x MPC Back-to-Back Body Adapter

Part #:	MPC17C1739
Material:	Polysulfone, USP Class VI, ADCF
Pressure Range:	Up to 60 psi, 4.1 bar
Color:	Amber Tint
Temp. Range:	-40°F to 300°F (-40°C to 149°C)
Mounting Option:	Free Floating
Sterilization:	Gamma, Autoclave
Valve Options:	Non-Valved
Material Finish:	Natural

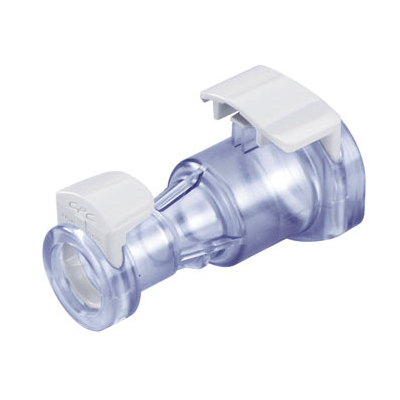

MPC Body x MPX Back-to-Back Body Adapter

Part #:	MPC17X1703
Material:	Polycarbonate, USP Class VI, ADCF
Pressure Range:	Up to 60 psi, 4.1 bar
Color:	Purple Tint
Temp. Range:	-40°F to 250°F (-40°C to 121°C)
Mounting Option:	Free Floating
Sterilization:	Gamma, Autoclave
Valve Options:	Non-Valved
Material Finish:	Natural

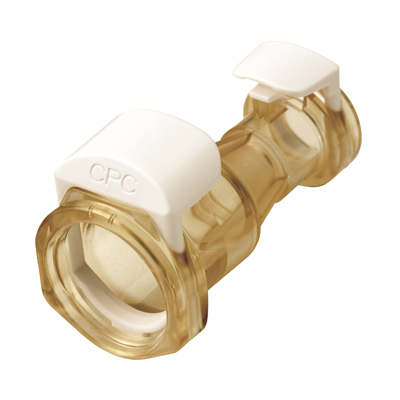

MPC Body x MPX Back-to-Back Body Adapter

Part #:	MPC17X1739
Material:	Polysulfone, USP Class VI, ADCF
Pressure Range:	Up to 60 psi, 4.1 bar
Color:	Amber Tint
Temp. Range:	-40°F to 300°F (-40°C to 149°C)
Mounting Option:	Free Floating
Sterilization:	Gamma, Autoclave
Valve Options:	Non-Valved
Material Finish:	Natural

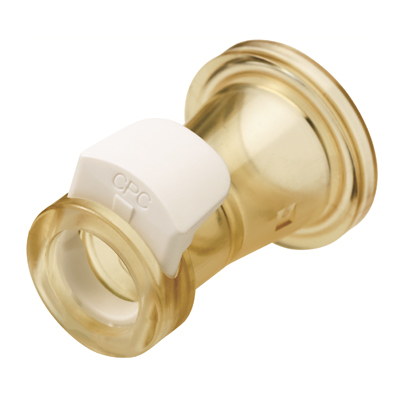

3/4 Sanitary Non-Valved Coupling Body

Part #:	MPC3301239
Material:	Polysulfone, USP Class VI, ADCF
Pressure Range:	Up to 60 psi, 4.1 bar
Color:	Amber Tint
Temp. Range:	-40°F to 300°F (-40°C to 149°C)
Mounting Option:	Free Floating
Sterilization:	Gamma, Autoclave
Seal Options:	Silicone, platinum-cured, USP Class VI, ADCF
Valve Options:	Non-Valved
Material Finish:	Natural

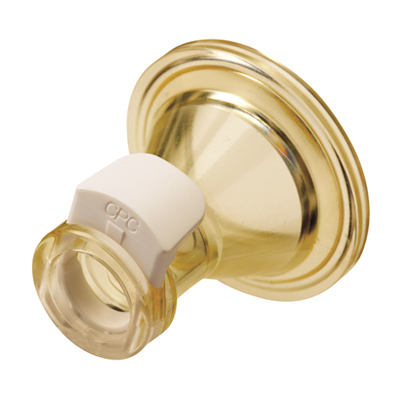

1 Sanitary Non-Valved Coupling Body

Part #:	MPC3301639
Material:	Polysulfone, USP Class VI, ADCF
Pressure Range:	Up to 60 psi, 4.1 bar
Color:	Amber Tint
Temp. Range:	-40°F to 300°F (-40°C to 149°C)
Mounting Option:	Free Floating
Sterilization:	Gamma, Autoclave
Seal Options:	Silicone, platinum-cured, USP Class VI, ADCF
Valve Options:	Non-Valved
Material Finish:	Natural

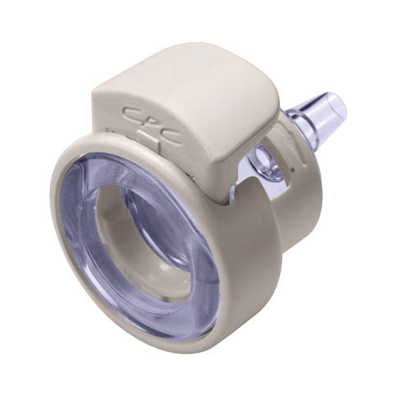

1/8 Hose Barb Non-Valved In-Line Coupling Body With Lock

Part #:	MPCK17002T03
Material:	Polycarbonate, USP Class VI, ADCF
Pressure Range:	Up to 60 psi, 4.1 bar
Color:	Purple Tint
Temp. Range:	-40°F to 250°F (-40°C to 121°C)
Mounting Option:	Free Floating
Sterilization:	Gamma, Autoclave
Valve Options:	Non-Valved
Material Finish:	Natural

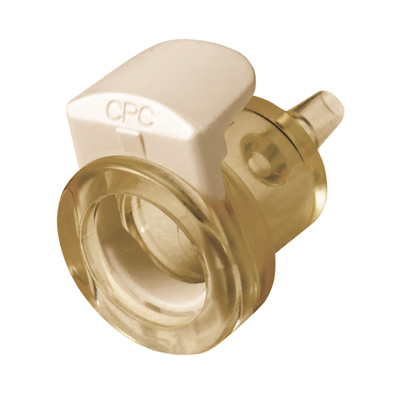

1/8 Hose Barb Non-Valved In-Line Coupling Body With Lock

Part #:	MPCK17002T39
Material:	Polysulfone, USP Class VI, ADCF
Pressure Range:	Up to 60 psi, 4.1 bar
Color:	Amber Tint
Temp. Range:	-40°F to 300°F (-40°C to 149°C)
Mounting Option:	Free Floating
Sterilization:	Gamma, Autoclave
Valve Options:	Non-Valved
Material Finish:	Natural

1/4 Hose Barb Non-Valved Coupling Body With Lock

Part #:	MPCK17004T03
Material:	Polycarbonate, USP Class VI, ADCF
Pressure Range:	Up to 60 psi, 4.1 bar
Color:	Purple Tint
Temp. Range:	-40°F to 250°F (-40°C to 121°C)
Mounting Option:	Free Floating
Sterilization:	Gamma, Autoclave
Valve Options:	Non-Valved
Material Finish:	Natural

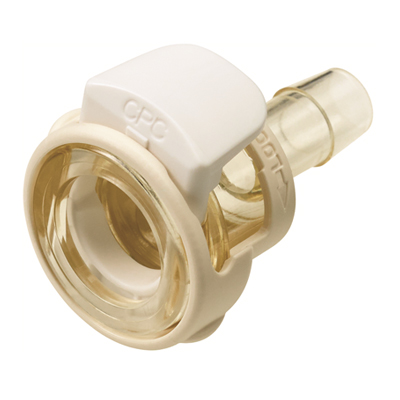

1/4 Hose Barb Non-Valved Coupling Body With Lock

Part #:	MPCK17004T39
Material:	Polysulfone, USP Class VI, ADCF
Pressure Range:	Up to 60 psi, 4.1 bar
Color:	Amber Tint
Temp. Range:	-40°F to 300°F (-40°C to 149°C)
Mounting Option:	Free Floating
Sterilization:	Gamma, Autoclave
Valve Options:	Non-Valved
Material Finish:	Natural

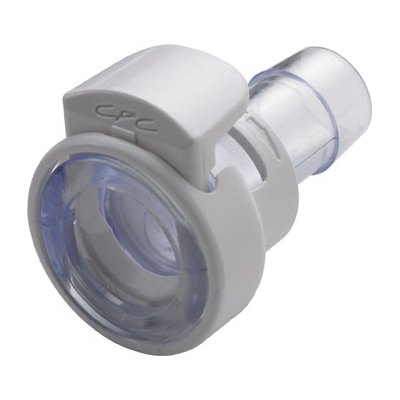

3/8 Hose Barb Non-Valved Coupling Body With Lock

Part #:	MPCK17006T03
Material:	Polycarbonate, USP Class VI, ADCF
Pressure Range:	Up to 60 psi, 4.1 bar
Color:	Purple Tint
Temp. Range:	-40°F to 250°F (-40°C to 121°C)
Mounting Option:	Free Floating
Sterilization:	Gamma, Autoclave
Valve Options:	Non-Valved
Material Finish:	Natural

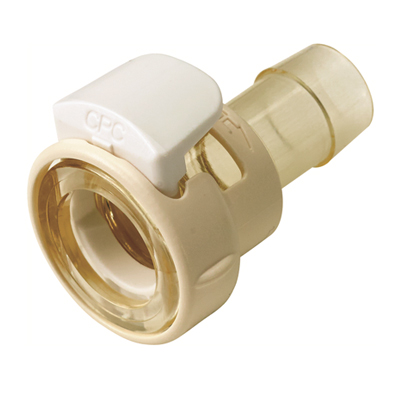

3/8 Hose Barb Non-Valved Coupling Body With Lock

Part #:	MPCK17006T39
Material:	Polysulfone, USP Class VI, ADCF
Pressure Range:	Up to 60 psi, 4.1 bar
Color:	Amber Tint
Temp. Range:	-40°F to 300°F (-40°C to 149°C)
Mounting Option:	Free Floating
Sterilization:	Gamma, Autoclave
Valve Options:	Non-Valved
Material Finish:	Natural

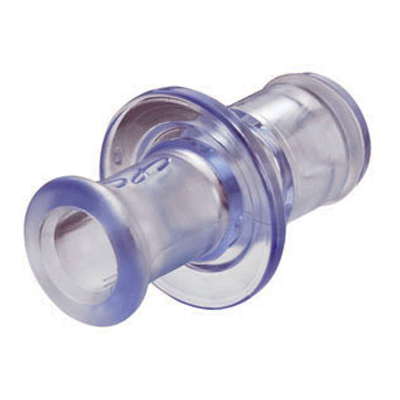

MPC Coupling Plug

Part #:	MPC30003M
Material:	Polycarbonate, USP Class VI, ADCF
Pressure Range:	Up to 60 psi, 4.1 bar
Color:	Purple Tint
Temp. Range:	-40°F to 250°F (-40°C to 121°C)
Mounting Option:	Free Floating
Sterilization:	Gamma, Autoclave
Seal Options:	Silicone, platinum-cured, USP Class VI, ADCF
Valve Options:	Non-Valved
Material Finish:	Natural

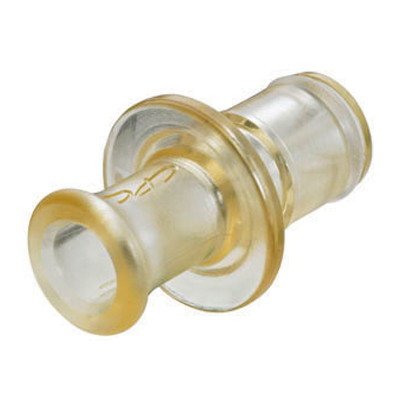

MPC Coupling Plug

Part #:	MPC30039M
Material:	Polysulfone, USP Class VI, ADCF
Pressure Range:	Up to 60 psi, 4.1 bar
Color:	Amber Tint
Temp. Range:	-40°F to 300°F (-40°C to 149°C)
Mounting Option:	Free Floating
Sterilization:	Gamma, Autoclave
Seal Options:	Silicone, platinum-cured, USP Class VI, ADCF
Valve Options:	Non-Valved
Material Finish:	Natural

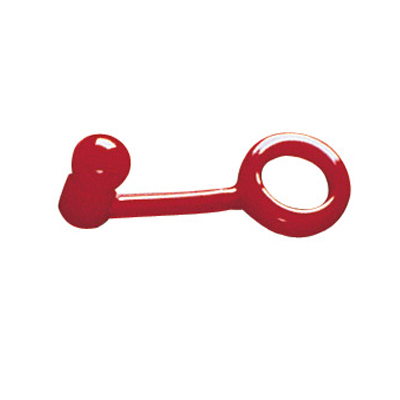

MPC Tethered Plug

Part #:	MPC30L
Material:	PVC
Pressure Range:	Up to 60 psi, 4.1 bar
Color:	Red
Temp. Range:	0°F to 0°F (0°C to 0°C)
Mounting Option:	Free Floating
Seal Options:	Silicone, platinum-cured, USP Class VI, ADCF
Valve Options:	Non-Valved
Material Finish:	Molded Red

MPC Coupling Cap

Part #:	MPC32003
Material:	Polycarbonate, USP Class VI, ADCF
Pressure Range:	Up to 60 psi, 4.1 bar
Color:	Purple Tint
Temp. Range:	-40°F to 250°F (-40°C to 121°C)
Mounting Option:	Free Floating
Sterilization:	Gamma, Autoclave
Seal Options:	Silicone, platinum-cured, USP Class VI, ADCF
Valve Options:	Non-Valved
Material Finish:	Natural

MPC Coupling Cap

Part #:	MPC32039
Material:	Polysulfone, USP Class VI, ADCF
Pressure Range:	Up to 60 psi, 4.1 bar
Color:	Amber Tint
Temp. Range:	-40°F to 300°F (-40°C to 149°C)
Mounting Option:	Free Floating
Sterilization:	Gamma, Autoclave
Seal Options:	Silicone, platinum-cured, USP Class VI, ADCF
Valve Options:	Non-Valved
Material Finish:	Natural

MPC Tethered Cap

Part #:	MPC32L
Material:	PVC
Pressure Range:	Up to 60 psi, 4.1 bar
Color:	Red
Temp. Range:	0°F to 0°F (0°C to 0°C)
Mounting Option:	Free Floating
Seal Options:	Silicone, platinum-cured, USP Class VI, ADCF
Valve Options:	Non-Valved
Material Finish:	Molded Red

MPC Sealing Cap With Lock

Part #:	MPCK32003
Material:	Polycarbonate, USP Class VI, ADCF
Pressure Range:	Up to 60 psi, 4.1 bar
Color:	Purple Tint
Temp. Range:	-40°F to 250°F (-40°C to 121°C)
Mounting Option:	Free Floating
Sterilization:	Gamma, Autoclave
Material Finish:	Natural

MPC Sealing Cap With Lock

Part #:	MPCK32039
Material:	Polysulfone, USP Class VI, ADCF
Pressure Range:	Up to 60 psi, 4.1 bar
Color:	Amber Tint
Temp. Range:	-40°F to 300°F (-40°C to 149°C)
Mounting Option:	Free Floating
Sterilization:	Gamma, Autoclave
Material Finish:	Natural

1/8 Hose Barb Non-Valved Class VI Polycarbonate Coupling Insert

Part #:	MPC22002T03
Material:	Polysulfone, USP Class VI, ADCF
Pressure Range:	Up to 60 psi, 4.1 bar
Color:	Purple Tint
Temp. Range:	-40°F to 250°F (-40°C to 121°C)
Mounting Option:	Free Floating
Sterilization:	Gamma, Autoclave
Seal Options:	Buna-N USP Class V
Valve Options:	Non-Valved
Material Finish:	Natural

1/8 Hose Barb Non-Valved In-Line Coupling Insert

Part #:	MPC22002T03M
Material:	Polycarbonate, USP Class VI, ADCF
Pressure Range:	Up to 60 psi, 4.1 bar
Color:	Purple Tint
Temp. Range:	-40°F to 250°F (-40°C to 121°C)
Mounting Option:	Free Floating
Sterilization:	Gamma, Autoclave
Seal Options:	Silicone, platinum-cured, USP Class VI, ADCF
Valve Options:	Non-Valved
Material Finish:	Natural

1/8 Hose Barb Non-Valved In-Line Coupling Body

Part #:	MPC22002T39M
Material:	Polysulfone, USP Class VI, ADCF
Pressure Range:	Up to 60 psi, 4.1 bar
Color:	Amber Tint
Temp. Range:	-40°F to 300°F (-40°C to 149°C)
Mounting Option:	Free Floating
Sterilization:	Gamma, Autoclave
Seal Options:	Silicone, platinum-cured, USP Class VI, ADCF
Valve Options:	Non-Valved
Material Finish:	Natural

1/4 Hose Barb Non-Valved Coupling Insert

Part #:	MPC22004T
Material:	ABS
Pressure Range:	Up to 60 psi, 4.1 bar
Color:	White
Temp. Range:	-40°F to 160°F (-40°C to 71°C)
Mounting Option:	Free Floating
Sterilization:	Gamma
Seal Options:	Buna-N USP Class V
Valve Options:	Non-Valved
Material Finish:	Molded White

1/4 Hose Barb Non-Valved Coupling Insert

Part #:	MPC22004T03
Material:	Polycarbonate, USP Class VI, ADCF
Pressure Range:	Up to 60 psi, 4.1 bar
Color:	Purple Tint
Temp. Range:	-40°F to 250°F (-40°C to 121°C)
Mounting Option:	Free Floating
Sterilization:	Gamma, Autoclave
Seal Options:	Buna-N USP Class V
Valve Options:	Non-Valved
Material Finish:	Natural

1/4 Hose Barb Non-Valved Coupling Insert

Part #:	MPC22004T03M
Material:	Polycarbonate, USP Class VI, ADCF
Pressure Range:	Up to 60 psi, 4.1 bar
Color:	Purple Tint
Temp. Range:	-40°F to 250°F (-40°C to 121°C)
Mounting Option:	Free Floating
Sterilization:	Gamma, Autoclave
Seal Options:	Silicone, platinum-cured, USP Class VI, ADCF
Valve Options:	Non-Valved
Material Finish:	Natural

1/4 Hose Barb Non-Valved Coupling Insert

Part #:	MPC22004T39M
Material:	Polysulfone, USP Class VI, ADCF
Pressure Range:	Up to 60 psi, 4.1 bar
Color:	Amber Tint
Temp. Range:	-40°F to 300°F (-40°C to 149°C)
Mounting Option:	Free Floating
Sterilization:	Gamma, Autoclave
Seal Options:	Silicone, platinum-cured, USP Class VI, ADCF
Valve Options:	Non-Valved
Material Finish:	Natural

1/4 Hose Barb Non-Valved Coupling Insert

Part #:	MPC22004TM
Material:	ABS
Pressure Range:	Up to 60 psi, 4.1 bar
Color:	White
Temp. Range:	-40°F to 160°F (-40°C to 71°C)
Mounting Option:	Free Floating
Sterilization:	Gamma
Seal Options:	Silicone, platinum-cured, USP Class VI, ADCF
Valve Options:	Non-Valved
Material Finish:	Molded White

3/8 Hose Barb Non-Valved Coupling Insert

Part #:	MPC22006T
Material:	ABS
Pressure Range:	Up to 60 psi, 4.1 bar
Color:	White
Temp. Range:	-40°F to 160°F (-40°C to 71°C)
Mounting Option:	Free Floating
Sterilization:	Gamma
Seal Options:	Buna-N USP Class V
Valve Options:	Non-Valved
Material Finish:	Molded White

3/8 Hose Barb Non-Valved Coupling Insert

Part #:	MPC22006T03
Material:	Polycarbonate, USP Class VI, ADCF
Pressure Range:	Up to 60 psi, 4.1 bar
Color:	Purple Tint
Temp. Range:	-40°F to 250°F (-40°C to 121°C)
Mounting Option:	Free Floating
Sterilization:	Gamma, Autoclave
Seal Options:	Buna-N USP Class V
Valve Options:	Non-Valved
Material Finish:	Natural

3/8 Hose Barb Non-Valved Coupling Insert

Part #:	MPC22006T03M
Material:	Polycarbonate, USP Class VI, ADCF
Pressure Range:	Up to 60 psi, 4.1 bar
Color:	Purple Tint
Temp. Range:	-40°F to 250°F (-40°C to 121°C)
Mounting Option:	Free Floating
Sterilization:	Gamma, Autoclave
Seal Options:	Silicone, platinum-cured, USP Class VI, ADCF
Valve Options:	Non-Valved
Material Finish:	Natural

3/8 Hose Barb Non-Valved Coupling Insert

Part #:	MPC22006T39M
Material:	Polysulfone, USP Class VI, ADCF
Pressure Range:	Up to 60 psi, 4.1 bar
Color:	Amber Tint
Temp. Range:	-40°F to 300°F (-40°C to 149°C)
Mounting Option:	Free Floating
Sterilization:	Gamma, Autoclave
Seal Options:	Silicone, platinum-cured, USP Class VI, ADCF
Valve Options:	Non-Valved
Material Finish:	Natural

3/8 Hose Barb Non-Valved Coupling Insert

Part #:	MPC22006TM
Material:	ABS
Pressure Range:	Up to 60 psi, 4.1 bar
Color:	White
Temp. Range:	-40°F to 160°F (-40°C to 71°C)
Mounting Option:	Free Floating
Sterilization:	Gamma
Seal Options:	Silicone, platinum-cured, USP Class VI, ADCF
Valve Options:	Non-Valved
Material Finish:	Molded White

MPC to MPC Back-to-Back Insert Adapter

Part #:	MPC22C2239M
Material:	Material:Polysulfone, USP Class VI, ADCF
Pressure Range:	Up to 60 psi, 4.1 bar
Color:	Amber Tint
Temp. Range:	-40°F to 300°F (-40°C to 149°C)
Mounting Option:	Free Floating
Sterilization:	Gamma, Autoclave
Seal Options:	Silicone, platinum-cured, USP Class VI, ADCF
Valve Options:	Non-Valved
Material Finish:	Natural

MPC to MPX Back-to-Back Insert Adapter

Part #:	MPC22X2239M
Material:	Polysulfone, USP Class VI, ADCF
Pressure Range:	Up to 60 psi, 4.1 bar
Color:	Amber Tint
Temp. Range:	-40°F to 300°F (-40°C to 149°C)
Mounting Option:	Free Floating
Sterilization:	Gamma, Autoclave
Seal Options:	Silicone, platinum-cured, USP Class VI, ADCF
Valve Options:	Non-Valved
Material Finish:	Natural

3/4 Sanitary Non-Valved MPC Coupling Insert

Part #:	MPC44012T39M
Material:	Polysulfone, USP Class VI, ADCF
Pressure Range:	Up to 60 psi, 4.1 bar
Color:	Amber Tint
Temp. Range:	-40°F to 300°F (-40°C to 149°C)
Mounting Option:	Free Floating
Sterilization:	Gamma, Autoclave
Seal Options:	Silicone, platinum-cured, USP Class VI, ADCF
Valve Options:	Non-Valved
Material Finish:	Natural

1 1/2 Sanitary Non-Valved MPC Coupling Insert

Part #:	MPC44024T39M
Material:	Polysulfone, USP Class VI, ADCF
Pressure Range:	Up to 60 psi, 4.1 bar
Color:	Amber Tint
Temp. Range:	-40°F to 300°F (-40°C to 149°C)
Mounting Option:	Free Floating
Sterilization:	Gamma, Autoclave
Seal Options:	Silicone, platinum-cured, USP Class VI, ADCF
Valve Options:	Non-Valved
Material Finish:	Natural

3/4 Sanitary Non-Valved MPX Coupling Insert

Part #:	MPX44012T39M
Material:	Polysulfone, USP Class VI, ADCF
Pressure Range:	Up to 60 psi, 4.1 bar
Color:	Amber Tint
Temp. Range:	-40°F to 300°F (-40°C to 149°C)
Mounting Option:	Free Floating
Sterilization:	Gamma, Autoclave
Valve Options:	Non-Valved
Material Finish:	Natural

1-1/2 Sanitary Non-Valved MPX Coupling Insert

Part #:	MPX44024T39M
Material:	Polysulfone, USP Class VI, ADCF
Pressure Range:	Up to 60 psi, 4.1 bar
Color:	Amber Tint
Temp. Range:	-40°F to 300°F (-40°C to 149°C)
Mounting Option:	Free Floating
Sterilization:	Gamma, Autoclave
Valve Options:	Non-Valved
Material Finish:	Natural

Productos Relacionados

MPC Series

Conectores de pequeño formato para conexiones rápidas.

Características

Beneficios

Legend

Straight-Through

Single Shut-Off

Double Shut-Off

Non-Spill

Bodies

MPC17002T03

MPC17002T39

MPC17004T

MPC17004T03

MPC17004T39

MPC17006T

MPC17006T03

MPC17006T39

MPC17C1703

MPC17C1739

MPC17X1703

MPC17X1739

MPC3301239

MPC3301639

MPCK17002T03

MPCK17002T39

MPCK17004T03

MPCK17004T39

MPCK17006T03

MPCK17006T39

Caps & Plugs

MPC30003M

MPC30039M

MPC30L

MPC32003

MPC32039

MPC32L

MPCK32003

MPCK32039

Inserts

MPC22002T03

MPC22002T03M

MPC22002T39M

MPC22004T

MPC22004T03

MPC22004T03M

MPC22004T39M

MPC22004TM

MPC22006T

MPC22006T03

MPC22006T03M

MPC22006T39M

MPC22006TM

MPC22C2239M

MPC22X2239M

MPC44012T39M

MPC44024T39M

MPX44012T39M

MPX44024T39M
