AseptiQuik® X

Conectores de pequeño formato para conexiones rápidas.

Los conectores AseptiQuik® X de gran formato de 1 "proporcionan conexiones estériles rápidas y fáciles para aplicaciones de alto flujo, incluso en entornos no estériles.
El diseño "TWIST-PULL-TWIST" de AseptiQuik X permite a los usuarios transferir fácilmente grandes volúmenes de medios fácilmente con menos riesgo de error del operador.
El robusto diseño del conector proporciona un rendimiento confiable sin la necesidad de abrazaderas, accesorios o soldadores de tubo.
Los fabricantes biofarmacéuticos ahora pueden hacer conexiones estériles de 1" con la calidad y la disponibilidad de mercado que esperan del líder en tecnología de conexión de un solo uso.

Características y Beneficios

Características

Diseño TWIST-PULL-TWIST
Membrana Pull Tabs
Construcción robusta
Anillo de bloqueo integrado
Colder Click

Beneficios

El proceso de conexión intuitivo de tres pasos reduce el riesgo de error del operador
Asegurar la eliminación simultánea y segura de ambas membranas
Rendimiento repetible y confiable sin necesidad de hardware adicional
Asegura la conexión final evitando el desmontaje
Confirmación sonora de los pasos de ensamblaje completados

Especificaciones técnicas

	Pressure:	Up to 60 psi, 4.1 bar
	Temperature:	39°F to 104°F (4°C to 40°C)
	Typical Flow Rate:	Cv~14.4 max
	Materials:
	Main Components:	Polycarbonate (white), USP Class VI, ADCF
	Lock Ring:	Polycarbonate (blue), USP Class VI, ADCF
	Pull Tabs:	Polycarbonate (blue, standard version), USP Class VI, ADCF Polycarbonate (white, HT version), USP Class VI, ADCF
	Membrane:	Polyethylene (standard version), USP Class VI, ADCF Hydrophobic polyethersulfone (HT version), USP Class VI
	Caps:	Polypropylene (clear), USP Class VI, ADCF
	Seals:	Silicone (clear), platinum-cured, USP Class VI, ADCF
	Membrane:	Polyethylene (standard version), USP Class VI, ADCF Hydrophobic polyethersulfone (HT version), USP Class VI
	Termination Size:	3/4" and 1" ID hose barb (19.0mm and 25.4mm), 1-1/2" sanitary
	Sterilization:
	Gamma:	Up to 50kGy irradiation
	Autoclave:	High Temp (HT) Version: Up to 266°F (130°C) for 30 minutes

ADVERTENCIA: la presión, la temperatura, los productos químicos y el entorno operativo pueden afectar el rendimiento de los acoplamientos. Es responsabilidad del cliente probar la idoneidad de los productos de Colder en sus propias condiciones de aplicación.

Cv Value

Cv~14.4 max

Legend

Straight-Through

Single Shut-Off

Double Shut-Off

Non-Spill

Cv values are based on gpm and psi, and Ipm and bar (shown in parentheses)

Productos

Bodies

Inserts

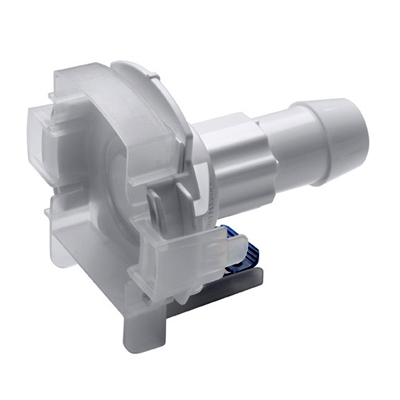

Part #:	AQX17012
Material:	Polycarbonate, USP Class VI, ADCF
Pressure Range:	Vacuum to 60 psi, 4.1 bar
Color:	White with blue pull tab
Temp. Range:	39°F to 104°F (4°C to 40°C)
Mounting Option:	Free Floating
Sterilization:	Gamma
Seal Options:	Silicone, platinum-cured, USP Class VI, ADCF
Valve Options:	Non-Valved
Material Finish:	Molded White

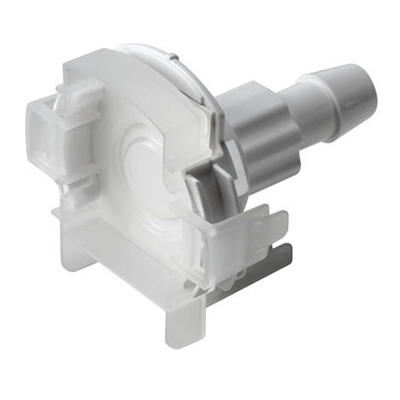

3/8 Hose Barb AseptiQuik Body - High Temperature

Part #:	AQX17012HT
Material:	Polycarbonate, USP Class VI, ADCF
Pressure Range:	Vacuum to 60 psi, 4.1 bar
Color:	White with white pull tab
Temp. Range:	39°F to 104°F (4°C to 40°C)
Mounting Option:	Free Floating
Sterilization:	Gamma, Autoclave
Seal Options:	Silicone, platinum-cured, USP Class VI, ADCF
Valve Options:	Non-Valved
Material Finish:	Molded White

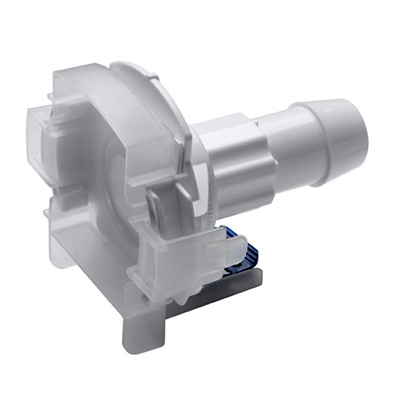

1 Hose Barb AseptiQuik X Body

Part #:	AQX17016
Material:	Polycarbonate, USP Class VI, ADCF
Pressure Range:	Vacuum to 60 psi, 4.1 bar
Color:	White with blue pull tab
Temp. Range:	39°F to 104°F (4°C to 40°C)
Mounting Option:	Free Floating
Sterilization:	Gamma
Seal Options:	Silicone, platinum-cured, USP Class VI, ADCF
Valve Options:	Non-Valved
Material Finish:	Molded White

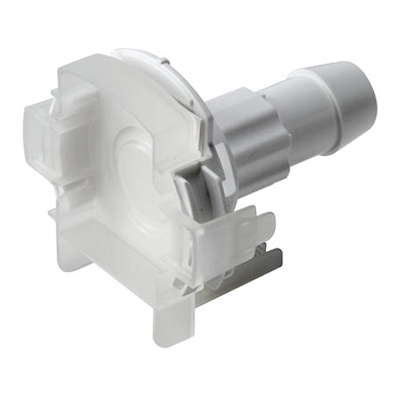

1 Hose Barb AseptiQuik X Body, High Temperature

Part #:	AQX17016HT
Material:	Polycarbonate, USP Class VI, ADCF
Pressure Range:	Vacuum to 60 psi, 4.1 bar
Color:	White with white pull tab
Temp. Range:	39°F to 104°F (4°C to 40°C)
Mounting Option:	Free Floating
Sterilization:	Gamma, Autoclave
Seal Options:	Silicone, platinum-cured, USP Class VI, ADCF
Valve Options:	Non-Valved
Material Finish:	Molded White

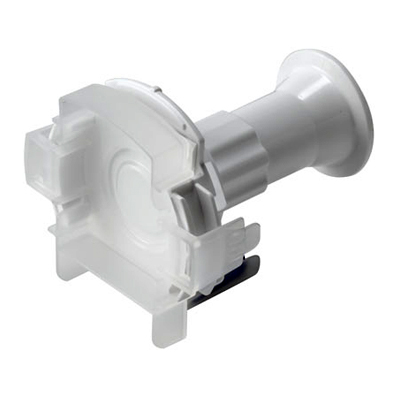

1-1/2 Sanitary AseptiQuik X Body

Part #:	AQX33024
Material:	Polycarbonate, USP Class VI, ADCF
Pressure Range:	Vacuum to 60 psi, 4.1 bar
Color:	White with blue pull tab
Temp. Range:	39°F to 104°F (4°C to 40°C)
Mounting Option:	Free Floating
Sterilization:	Gamma
Seal Options:	Silicone, platinum-cured, USP Class VI, ADCF
Valve Options:	Non-Valved
Material Finish:	Molded White

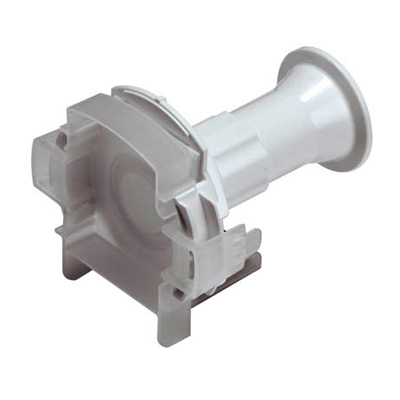

1-1/2 Sanitary AseptiQuik X Body, High Temperature

Part #:	AQX33024HT
Material:	Polycarbonate, USP Class VI, ADCF
Pressure Range:	Vacuum to 60 psi, 4.1 bar
Color:	White with white pull tab
Temp. Range:	39°F to 104°F (4°C to 40°C)
Mounting Option:	Free Floating
Sterilization:	Gamma, Autoclave
Seal Options:	Silicone, platinum-cured, USP Class VI, ADCF
Valve Options:	Non-Valved
Material Finish:	Molded White

3/4 Hose Barb AseptiQuik X Insert

Part #:	AQX22012
Material:	Polycarbonate, USP Class VI, ADCF
Pressure Range:	Vacuum to 60 psi, 4.1 bar
Color:	White with blue pull tab
Temp. Range:	39°F to 104°F (4°C to 40°C)
Mounting Option:	Free Floating
Sterilization:	Gamma
Seal Options:	Silicone, platinum-cured, USP Class VI, ADCF
Valve Options:	Non-Valved
Material Finish:	Molded White

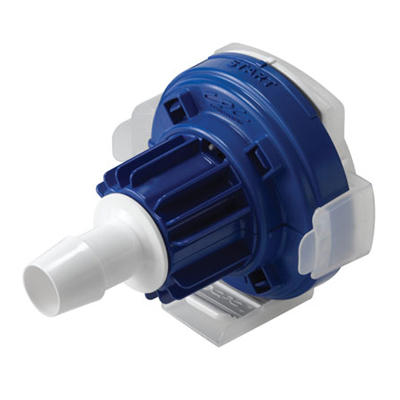

3/4 Hose Barb AseptiQuik X Insert, High Temperature

Part #:	AQX22012HT
Material:	Polycarbonate, USP Class VI, ADCF
Pressure Range:	Vacuum to 60 psi, 4.1 bar
Color:	White with white pull tab
Temp. Range:	39°F to 104°F (4°C to 40°C)
Mounting Option:	Free Floating
Sterilization:	Gamma, Autoclave
Seal Options:	Silicone, platinum-cured, USP Class VI, ADCF
Valve Options:	Non-Valved
Material Finish:	Molded White

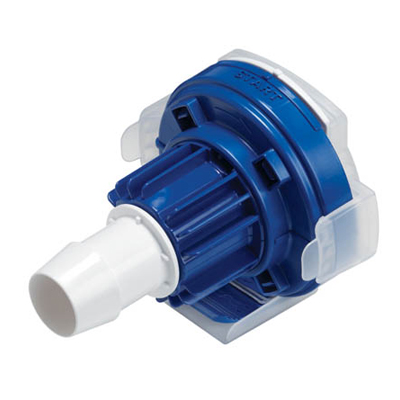

1 Hose Barb AseptiQuik X Insert

Part #:	AQX22016
Material:	Polycarbonate, USP Class VI, ADCF
Pressure Range:	Vacuum to 60 psi, 4.1 bar
Color:	White with blue pull tab
Temp. Range:	39°F to 104°F (4°C to 40°C)
Mounting Option:	Free Floating
Sterilization:	Gamma
Seal Options:	Silicone, platinum-cured, USP Class VI, ADCF
Valve Options:	Non-Valved
Material Finish:	Molded White

1/2 Hose Barb AseptiQuik Insert - High Temperature

Part #:	AQX22016HT
Material:	Polycarbonate, USP Class VI, ADCF
Pressure Range:	Vacuum to 60 psi, 4.1 bar
Color:	White with white pull tab
Temp. Range:	39°F to 104°F (4°C to 40°C)
Mounting Option:	Free Floating
Sterilization:	Gamma, Autoclave
Seal Options:	Silicone, platinum-cured, USP Class VI, ADCF
Valve Options:	Non-Valved
Material Finish:	Molded White

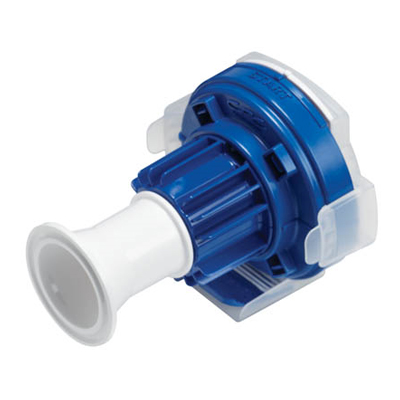

1-1/2 Sanitary AseptiQuik X Insert

Part #:	AQX44024
Material:	Polycarbonate, USP Class VI, ADCF
Pressure Range:	Vacuum to 60 psi, 4.1 bar
Color:	White with blue pull tab
Temp. Range:	39°F to 104°F (4°C to 40°C)
Mounting Option:	Free Floating
Sterilization:	Gamma
Seal Options:	Silicone, platinum-cured, USP Class VI, ADCF
Valve Options:	Non-Valved
Material Finish:	Molded White

1-1/2 Sanitary AseptiQuik X Insert, High Temperature

Part #:	AQX44024HT
Material:	Polycarbonate, USP Class VI, ADCF
Pressure Range:	Vacuum to 60 psi, 4.1 bar
Color:	White with white pull tab
Temp. Range:	39°F to 104°F (4°C to 40°C)
Mounting Option:	Free Floating
Sterilization:	Gamma, Autoclave
Seal Options:	Silicone, platinum-cured, USP Class VI, ADCF
Valve Options:	Non-Valved
Material Finish:	Molded White
